HRL1210W

發布時間：2020-12-04 14:19  瀏覽：

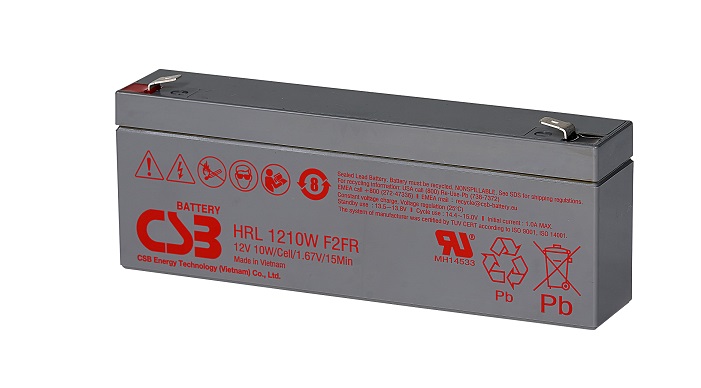

HRL1210W

12 V 10.0w/cell HRL 1210W is specially designed for high efficient discharge and long life.application. It\'s characteristics are small volume, light weight and high discharge efficiency. It can be used up to 8 years in standby service.

規格書

局?jǐn)?shù)

6

電壓值

12 V

安培數

10W @ 15 Minute-Rate to 1.67V Per Cell @ 25°C(77°F)

重量

Approx. 1.1kg(2.42 lbs)

最大放電電流5秒(A)

40A (5 Sec)

內阻(mΩ)

Approx. 32.1 mΩ

溫度工作范圍

Discharge：-15℃~50℃(5°F~122°F) Charge：-15℃~40℃(5°F~104°F) Storage：-15℃~40℃(5°F~104°F)

一般使用溫度工作范圍

25°C±3°C(77°F±5°F)

浮充使用充電條件

13.5 to 13.8 VDC/Unit Average at 25°C(77°F)

建議充電最大電流

1.0A

均充使用充電條件

14.4 to 15.0 VDC/Unit Average at 25°C(77°F)

自放電	It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃

端子	F2-Faston Tab 250

電槽組材質

ABS(UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request.

---
