HRL634W

發布時間：2020-12-04 14:18  瀏覽：

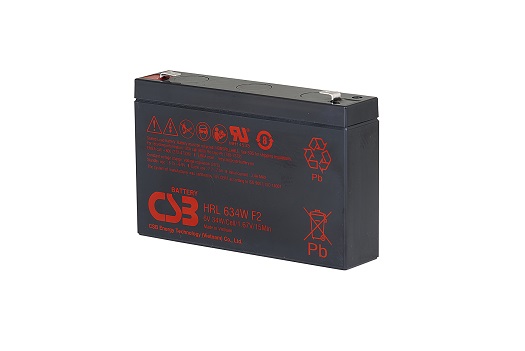

HRL634W

6 V 34.0w/cell HRL 634W is specially designed for high efficient discharge and long life.application. It\'s characteristics are small volume, light weight and high discharge efficiency. It can be used up to 8 years in standby service.

規格書

局數

3

電壓值

6 V

安培數

34W @ 15 Minute-Rate to 1.67V Per Cell @ 25°C(77°F)

重量

Approx. 1.32kg(2.91 lbs)

最大放電電流5秒(A)

130A (5 Sec)

內阻(mΩ)

Approx. 8.3 mΩ

溫度工作范圍

Discharge：-15℃~50℃(5°F~122°F) Charge：-15℃~40℃(5°F~104°F) Storage：-15℃~40℃(5°F~104°F)

一般使用溫度工作范圍

25°C±3°C(77°F±5°F)

浮充使用充電條件

6.75 to 6.9 VDC/Unit Average at 25°C(77°F)

建議充電最大電流

3.4A

均充使用充電條件

7.2 to 7.5 VDC/Unit Average at 25°C(77°F)

自放電	It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃

端子	F2-Faston Tab250

電槽組材質

ABS(UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request.

---
