GPL1272

發布時間：2020-12-04 10:09  瀏覽：

GPL1272

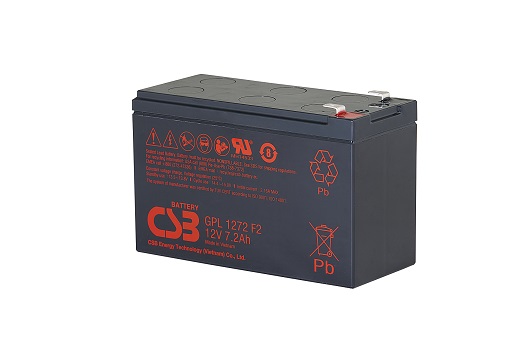

12 V 7.2Ah GPL 1272 is a general purpose battery up to 8 years service life under normal float charge at 25°C (77°F). As with all CSB batteries, all are rechargeable, highly efficient, leak proof and maintenance free.

規格書

局數

6

電壓值

12 V

安培數

7.2Ah @ 20 hr-rate to 1.75V per cell @ 25°C (77°F)

重量

Approx. 2.6kg. (5.73 lbs.)

最大放電電流5秒(A)

100/130 A (5sec.)

內阻(mΩ)

Approx. 22.0 mΩ

溫度工作范圍

Discharge：-15℃~50℃(5°F~122°F) Charge：-15℃~40℃(5°F~104°F) Storage：-15℃~40℃(5°F~104°F)

一般使用溫度工作范圍

25°C ± 3°C (77°F ± 3°F)

浮充使用充電條件

13.5 to 13.8 VDC/unit Average at 25°C (77°F)

建議充電最大電流

2.16A

均充使用充電條件

14.4 to 15.0 VDC/unit Average at 25°C (77°F)

自放電	It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃

端子	F1/F2-Faston Tab187/250

電槽組材質

ABS(UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request.

---
