GP6120

發布時間：2020-12-04 09:16  瀏覽：

GP6120

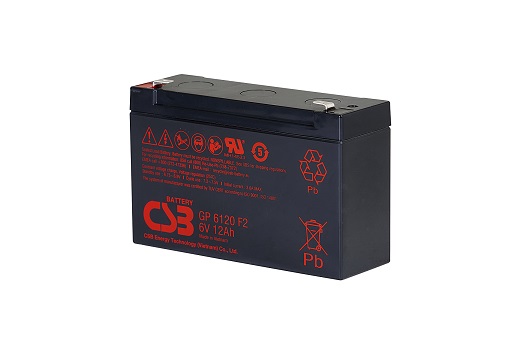

6 V 12.0Ah GP 6120 is a general purpose battery up to 5 years in standby service. As with all CSB batteries, all are rechargeable, highly efficient, leak proof and maintenance free.

規格書

局數

3

電壓值

6 V

安培數

12 Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F)

重量

Approx. 1.85kg. (4.08 lbs.)

最大放電電流5秒(A)

150A/180A (5sec.)

內阻(mΩ)

Approx. 8.9mΩ

溫度工作范圍

Discharge：-15℃~50℃(5°F~122°F) Charge：-15℃~40℃(5°F~104°F) Storage：-15℃~40℃(5°F~104°F)

一般使用溫度工作范圍

25°C ± 3°C (77°F± 5°F)

浮充使用充電條件

6.75 to 6.9 VDC/unit Average at 25℃ (77°F )

建議充電最大電流

3.6A

均充使用充電條件

7.2 to 7.5 VDC/unit Average at 25℃ (77°F )

自放電	It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃

端子	F1/F2-Faston Tab187/250

電槽組材質

ABS(UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request.

---
